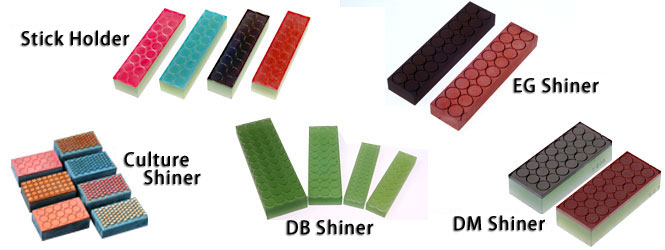

SHINER
SUPER SHINER
Dimensions(mm)
Thickness×Width×Length		 Smooth
diameter		 Rows Light Brown
#220-#320		 Orange
#320-#400		 Dark Brown
#400-#600		 Blue
#600-#800		 White
#800-#1200		 Red
#1200-#2000
18×25×100 7 3 SL-A73 SO-A73 SP-A73 SB-A73 SW-A73 SR-A73
11 2 SL-A112 SO-A112 SP-A112 SB-A112 SW-A112 SR-A112
CULTURE SHINER
Dimensions(mm)
Thickness×Width×Length		 Smooth
diameter		 Rows Light Brown
#220-#320		 Blue
#600-#800		 White
#800-#1200		 Red
#1200-#2000
20×40×70 9 5 CL-A95 CB-A95 CW-A95 CR-A95
3 13 CL-R385 CB-R385 CW-R385 CR-R385
DB SHINER
Dimensions(mm)
Thickness×Width×Length		 Smooth
diameter		 Rows Light blue
12×25×100 7 3 DB-A73
11 2 DB-A112
EG SHINER
Dimensions(mm)
Thickness×Width×Length		 Smooth
diameter		 Rows Dark Brown
#200		 Dark Brown
#320		 Dark Brown
#400		 Dark Brown
#600		 Dark Brown
#800		 Dark Brown
#1000
12×25×100 11 2 EGA-A112 EGB-A112 EGC-A112 EGD-A112 EGE-A112 EGF-A112
DM SHINER
Dimensions(mm)
Thickness×Width×Length		 Smooth
diameter		 Rows Dark Brown
#200		 Dark Brown
#320		 Dark Brown
#400		 Dark Brown
#600		 Dark Brown
#800		 Dark Brown
#1000
17×30×70 9 3 DMA-A93 DMB-A93 DMC-A93 DMD-A93 DME-A93 DMF-A93

DB SERIES

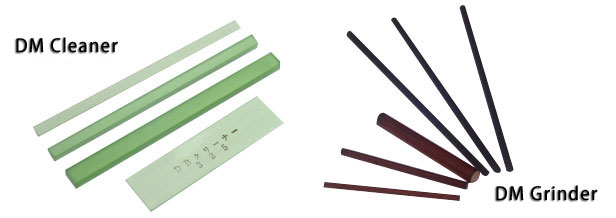

BD CLEANER
Dimensions(mm)
Thickness×Width×Length		 Grade
0.5×8×150 DB058L
1.0×8×150 DB018L
2.0×8×150 DB28L
3.0×8×150 DB38L
3.0×25×150 DB325
8.0×12×150 DB812L
8.0×16×150 DB816L
8.0×20×150 DB820L
DB SCRAPER
Dimensions(mm)
Thickness×Width×Length		 Grade
2.5×22×220 DBSC220
NS GRINDER
Dimensions(mm)
Diameter×Length		 Grade
3×50 NSD3S
3×100 NSD3M
3×150 NSD3L
6×50 NSD6S
6×100 NSD6M
6×150 NSD6L

DM WRAPPLE , TOOLING DRESSER
DM WRAPPLE
Dimensions(mm)
Thickness×Width×Length		 Grade
0.5×4×100 TS054
0.5×6×100 TS056
0.5×8×100 TS058
0.5×10×100 TS0510
1.0×4×100 TS104
1.0×6×100 TS106
1.0×8×100 TS108
1.0×10×100 TS110

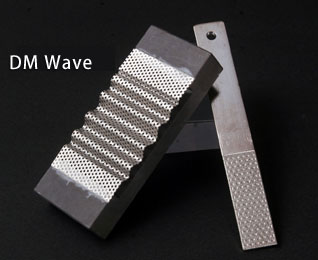

TOOLING DRESSER　DM WAVE
Dimensions(mm)
Thickness×Width×Length		 Grade　#120 Grade　#170
16×40×100 DMW120M DMW170M
TOOLING DRESSER　HAND DRESSER
Dimensions(mm)
Thickness×Width×Length		 Grade　#120 Grade　#170
3×16×121 DMR120M DMR170M
